Features
Elevate your experience with the next generation of lift capacity. Introducing the SM series - new line of tractors prepare to tackle your heavy loads.
Description

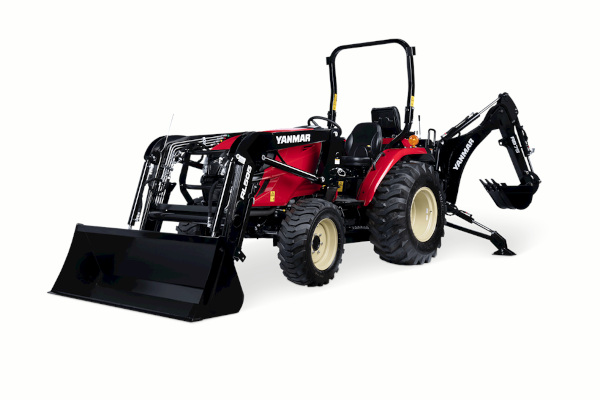

Offering Yanmar craftsmanship and comfort in a compact, agile body, the SM240 provides powerful multifunctional capability. Enrich your experience with a higher standard in tractor performance.
Features
- 2,116lb. Loader Lift Capacity
- Synchro Shuttle Transmission
- Comfortable Operator's Seat
- Factory-option Yanmar Backhoe Available
ADVANCED TECHNOLOGY AND DESIGN
This extraordinary machine offers cutting-edge features, all expertly crafted for effortless use. From the convenient, foldable ROPS to the joystick-operated front-end loader, every aspect has been designed to enhance your land-working experience.
TRANSFORMATIONAL PERFORMANCE
With a Yanmar engine providing maximum torque at lower RPMs, it tackles heavy loads and implements. Enjoy one of the highest lift capacities on the market.
EXCEPTIONAL QUALITY
Providing extraordinary durability and reliability plus an ergonomic operator station, it exceeeds industry standards in every way. It's a legacy your family will cherish for generations.
Specifications
| SPECIFICATIONS | |
| Ideal Acreage | 15-45 |
| Engine HP | 36.9 |
| Loader Lift Capacity | 2,116 LBS. |
| Transmission | Synchro Shuttle |
| POWERTRAIN | |
| Engine Manufacturer | Yanmar |
| Engine Gross Power | 36.9 HP (27.5 kW) |
| PTO Power | 28.2 HP (21.0 kW) |
| Rated Engine Speed | 3,000 RPM |
| Clutch | Dry Single Plate |
| CAPACITIES | |
| Fuel Tank | 9.0 gal. (34 L) |
| DRIVETRAIN | |
| Transmission Type | Synchro Shuttle |
| Rear Differential Lock | Foot Pedal Engagement |
| 2WD/4WD Engagement | Selectable |
| PTO Type | Independent |
| PTO Control | Electric/Hydraulic |
| Rear PTO Speed | 540 RPM |
| HYDRAULICS | |
| Pump Capacity (Steering) @ Rated RPM | 4.4 GPM (16.66 L/min) |
| Pump Capacity (Implement) @ Rated RPM | 6.1 GPM (23.09 L/min) |
| Pump Capacity (Total) @ Rated RPM | 10.5 GPM (39.75 L/min) |
| 3-Point Hitch Category | 1 |
| 3-Point Lift Capacity (Std.) | 2,639 lbf. (1,197 kgf) |
| 3-Point Lift Capacity at 24" (61 cm) | 1,558 lbf. (707 kgf) |
| Remote Valves | Optional (1 or 2) |
| 3rd Function Valve | Optional |
| DIMENSIONS AND WEIGHT | |
| Minimum Ground Clearance | 12.8" (325 mm) |
| Total Weight | 3,020 lb. (1,370 kg) |
| FRONT END LOADER | RL505 |
| Maximum Lift Height to Pivot Pin | 101.5" (2,578 mm) |
| Lift Capacity to Maximum Height at Pivot Pin | 2,116 lb. (960 kgf) |
| Breakout Force at Ground Level Pivot Pins | 3,435 lb. (1558 kgf) |
